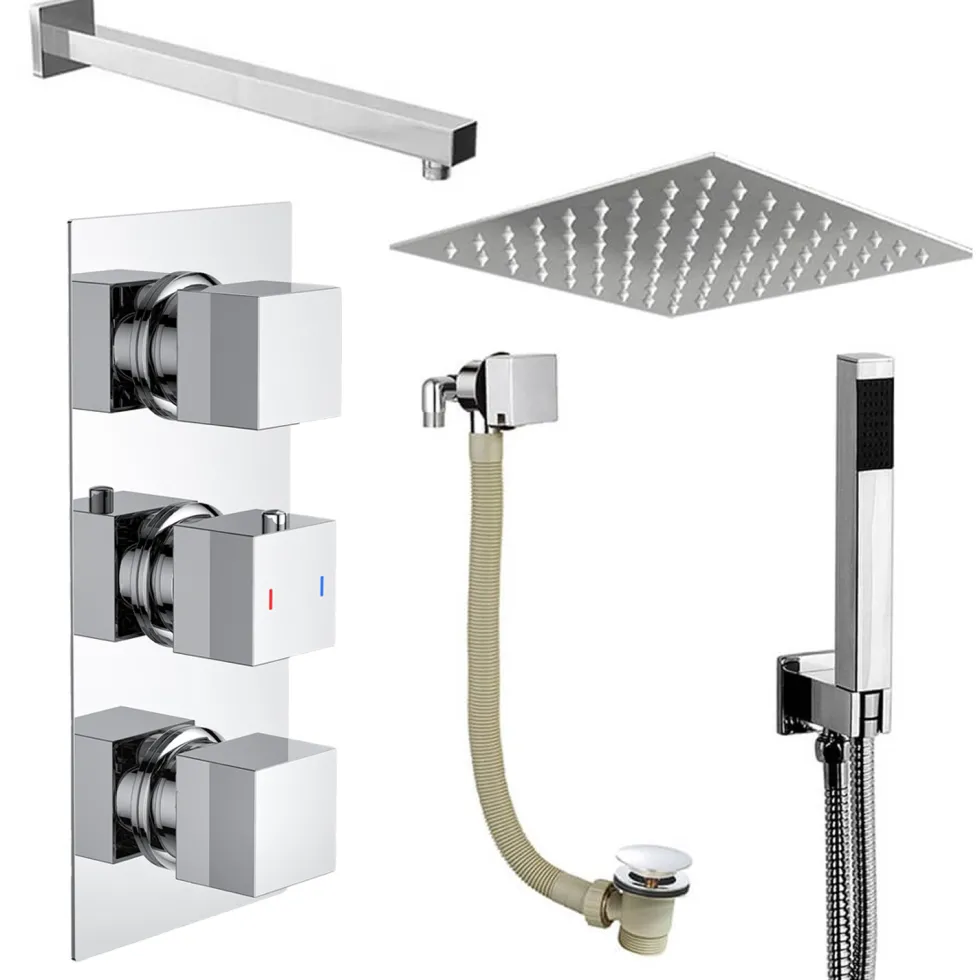

Zane Concealed Shower Valve, Fixed Shower Head, Handset & Overflow Bath Filler

Give your bathroom a makeover with the Zane Concealed Shower Valve, which includes a Fixed Shower Head, Handset, and Overflow Bath Filler. Easily transform your bathroom into a comfortable haven where you can enjoy a soothing rainfall shower, a minimalist wall handset, and an elegant overflow bath filler all operated through a single valve.

You have the freedom to customise your shower experience by selecting from four different shower arms and three distinct shower heads. Additionally, the valve can be effortlessly installed either vertically or horizontally, making it easy to modify your setup.

The modern square design of the wall handset, outlet elbow, and hose will seamlessly fit into any decor and with the added benefit of a bath filler, you can eliminate clutter on your bath ledge. The best part is that all three accessories can be controlled with the three outlet thermostatic valve.

Inside the valve, there’s a special Anti Calc Thermostatic Cartridge that helps with common issues like sudden changes in water temperature and reduced water flow due to blockages. To make use of this technology, simply press the safety button on the thermostatic handle and turn it from hot to cold. This action effectively gets rid of dirt, limescale, and debris that might have built up over time.

Valve Features:

• Modern 3 outlet concealed design with triple handle control
• Sleek Chrome finish
• Thermostatic valve with auto-shutoff mechanism protects you from sudden changes in temperature, helping prevent scalding
• Anti Calc thermostatic cartridge – advanced anti-debris technology that helps prevent blockage & limescale build-up for effortless temperature control
• Ceramic disc technology prevents any unwanted leaks or drips
• Interchangeable backplate design allows portrait or landscape orientation
• Crafted from brass (valve body), stainless steel (backplate) & zinc alloy (handles)
• WRAS approved
• Complies with BSEN 1111
• Covered by a 10 year manufacturer’s guarantee

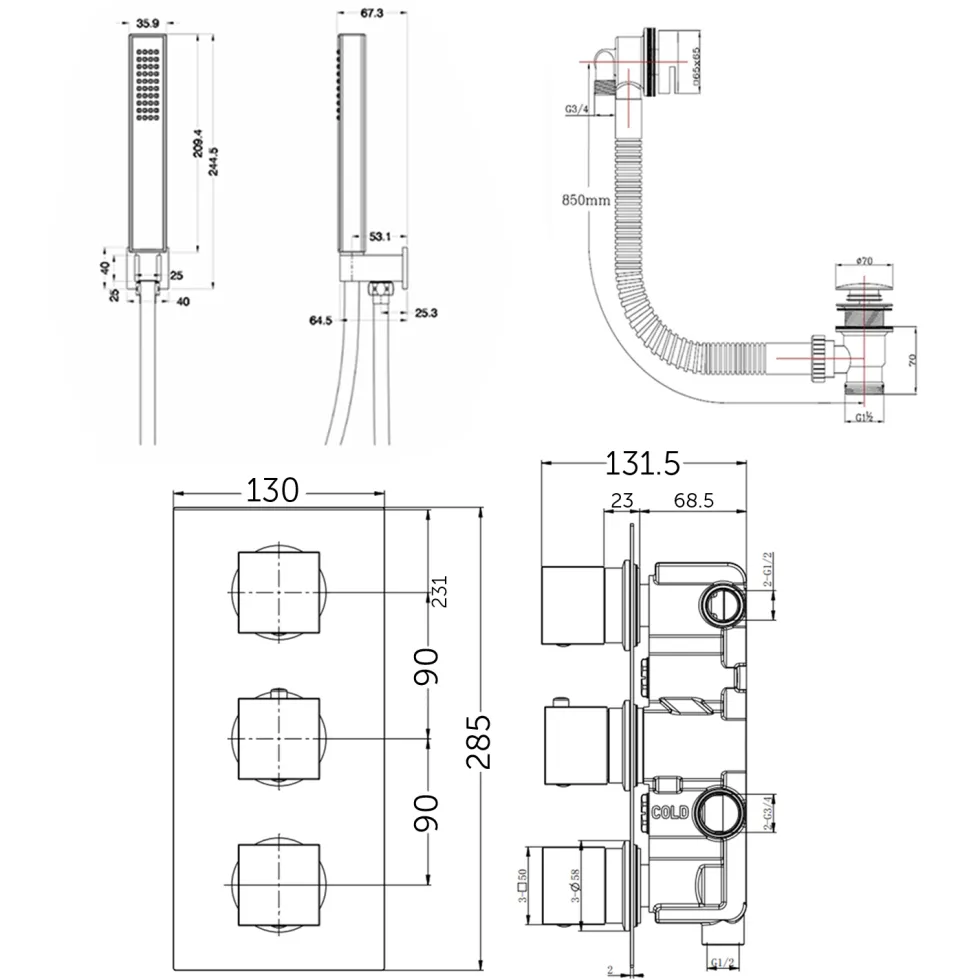

Dimensions:

• Height: 285mm
• Width: 130mm

Flow rates:

• 1.0 bar (l/min): 14.0
• 1.5 bar (l/min): 17.1
• 2.0 bar (l/min): 19.8
• 3.0 bar (l/min): 24.4
• 4.0 bar (l/min): 28.1
• 5.0 bar (l/min): 31.6

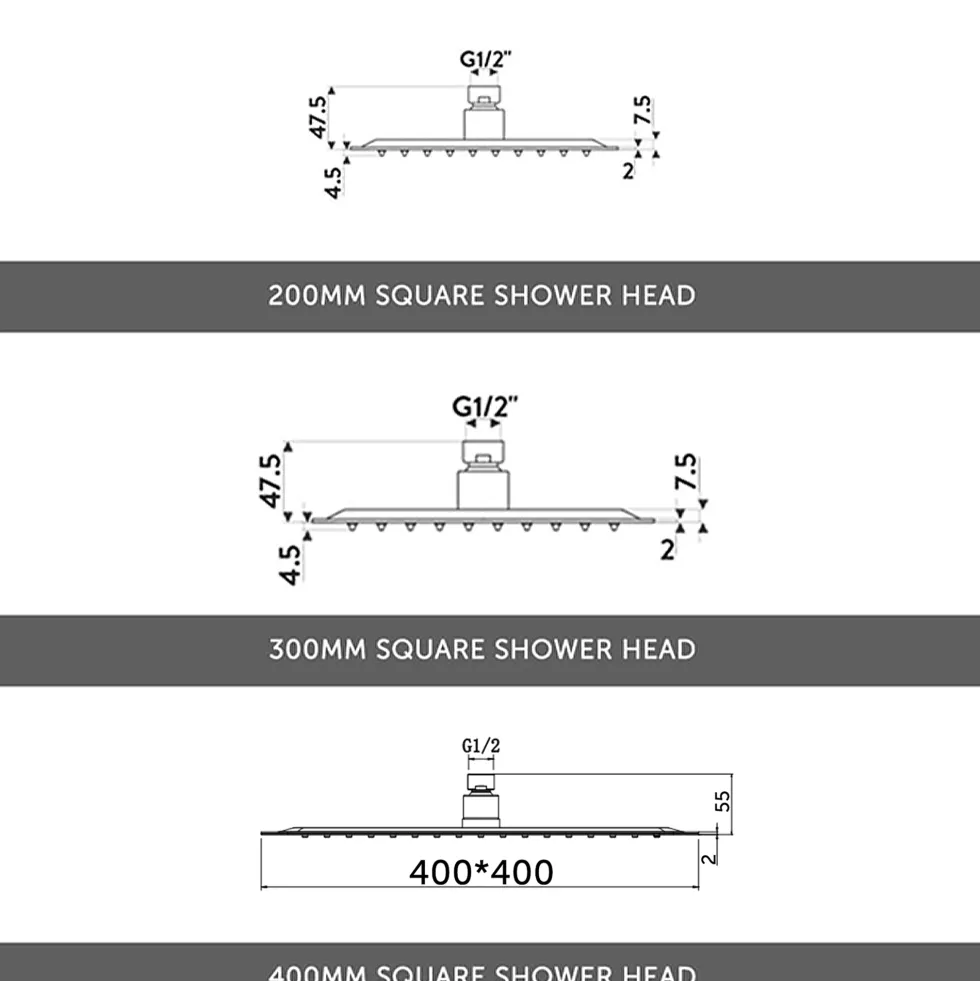

Shower Head Features:

• Choose from 200, 300, or 400mm
• Stainless steel shower head in a sleek Chrome finish
• 400mm head features air injection technology – providing softer showering experience & reducing water usage by mixing air with water
• Swivel joint easily adjusts the angle of the head
• Easy-clean rubber nozzles for easy cleaning
• 200 & 300mm heads covered by a lifetime manufacturer’s guarantee

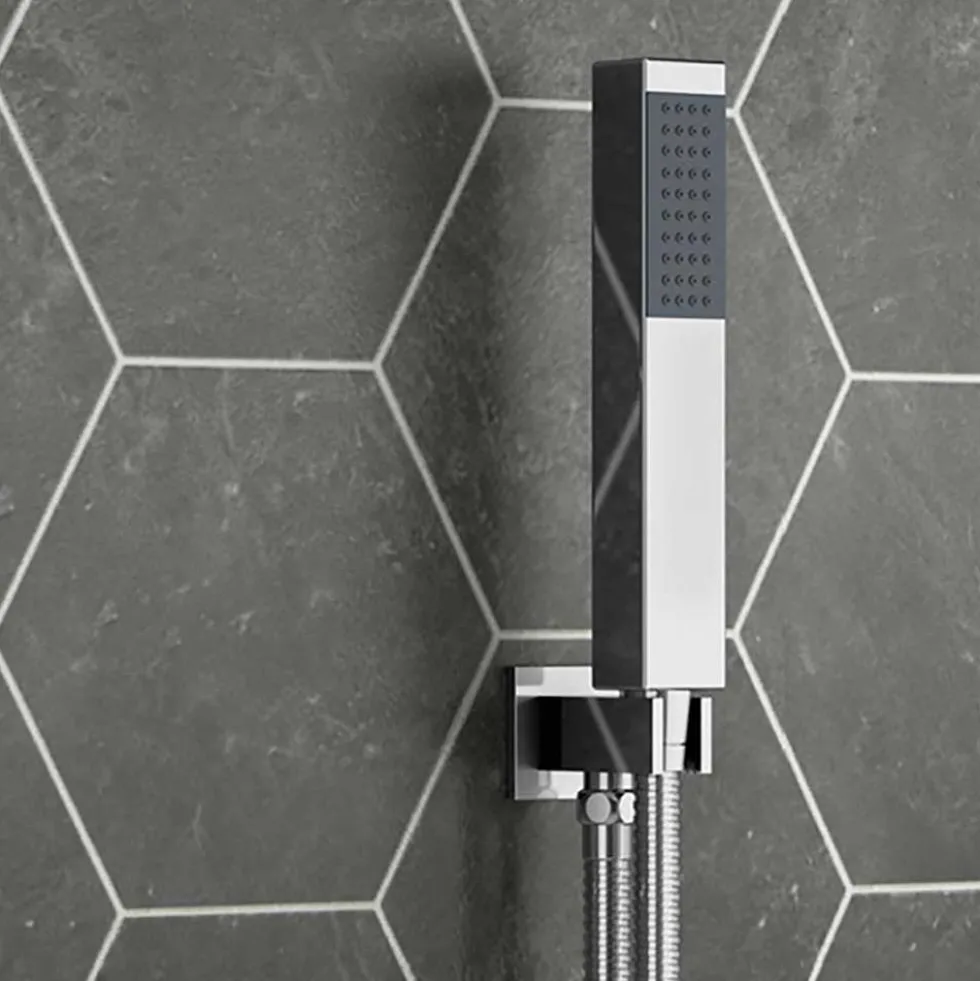

Shower Handset with Wall Outlet & Hose Features:

• Kit includes: shower handset with easy clean nozzles, 1.5m anti-rust shower hose & wall outlet elbow with integrated shower handset
• Modern concealed design in a high-shine Chrome finish
• Constructed from brass (outlet elbow) and ABS plastic (handset) ensure that the handset is light and easy to manoeuvre
• Covered by a 2 year manufacturer’s guarantee

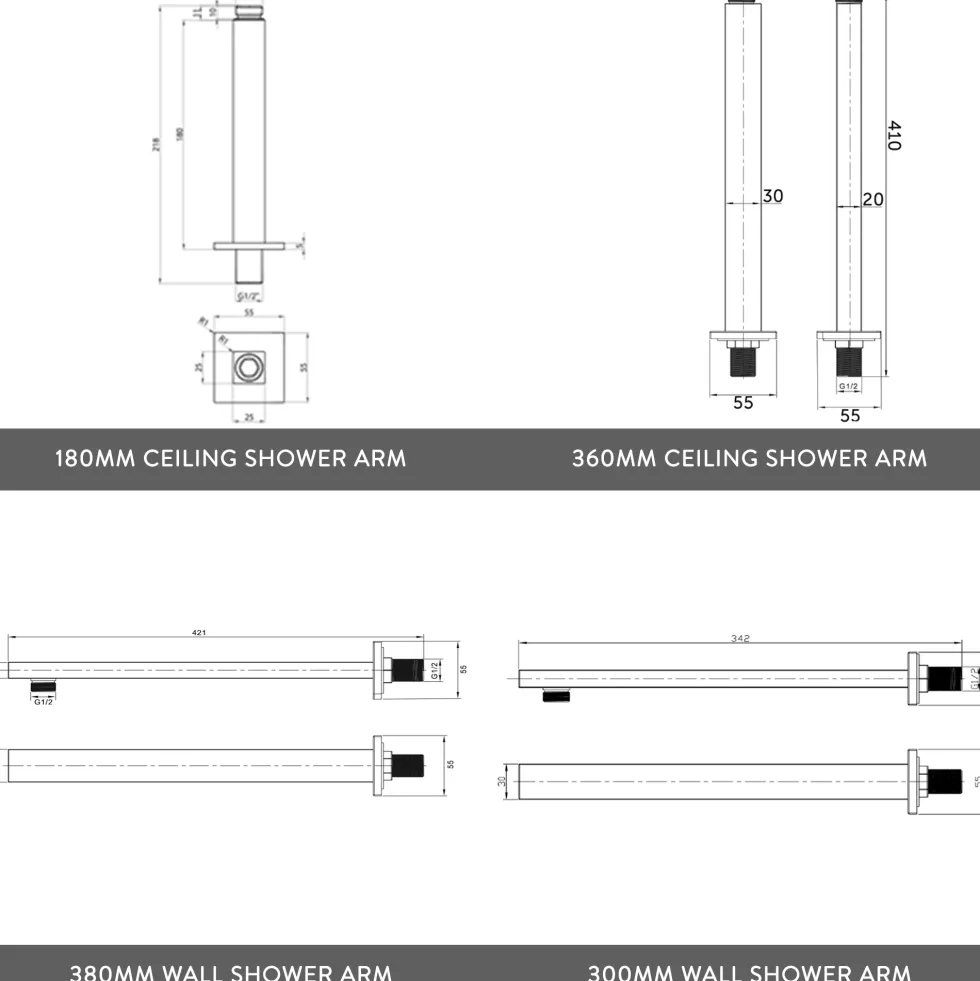

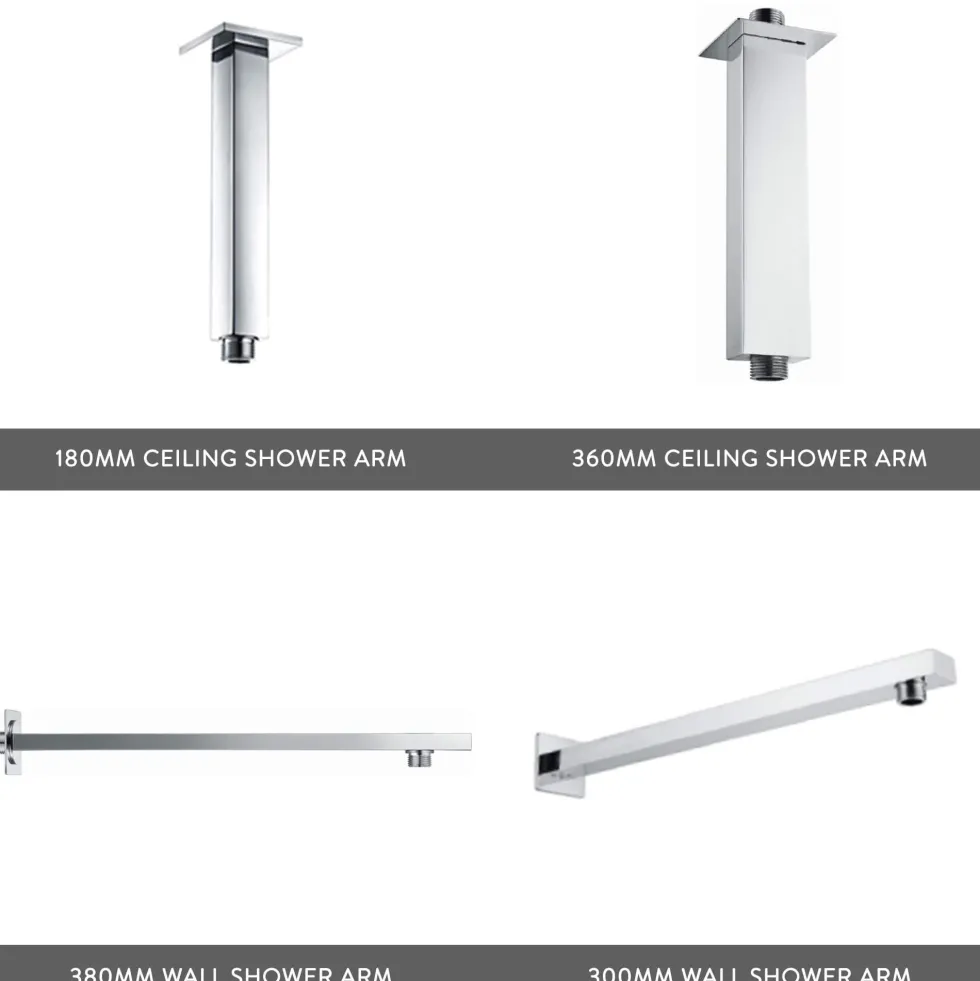

Shower Arm Features:

• 2 orientations and 4 sizes to choose from to fully customise your shower
• Constructed from brass with a dazzling Chrome finish
• 180mm ceiling arm – Lifetime guarantee
• 360mm ceiling arm – 5 year guarantee
• 300mm wall arm – 5 year guarantee
• 380mm wall arm – 2 year guarantee

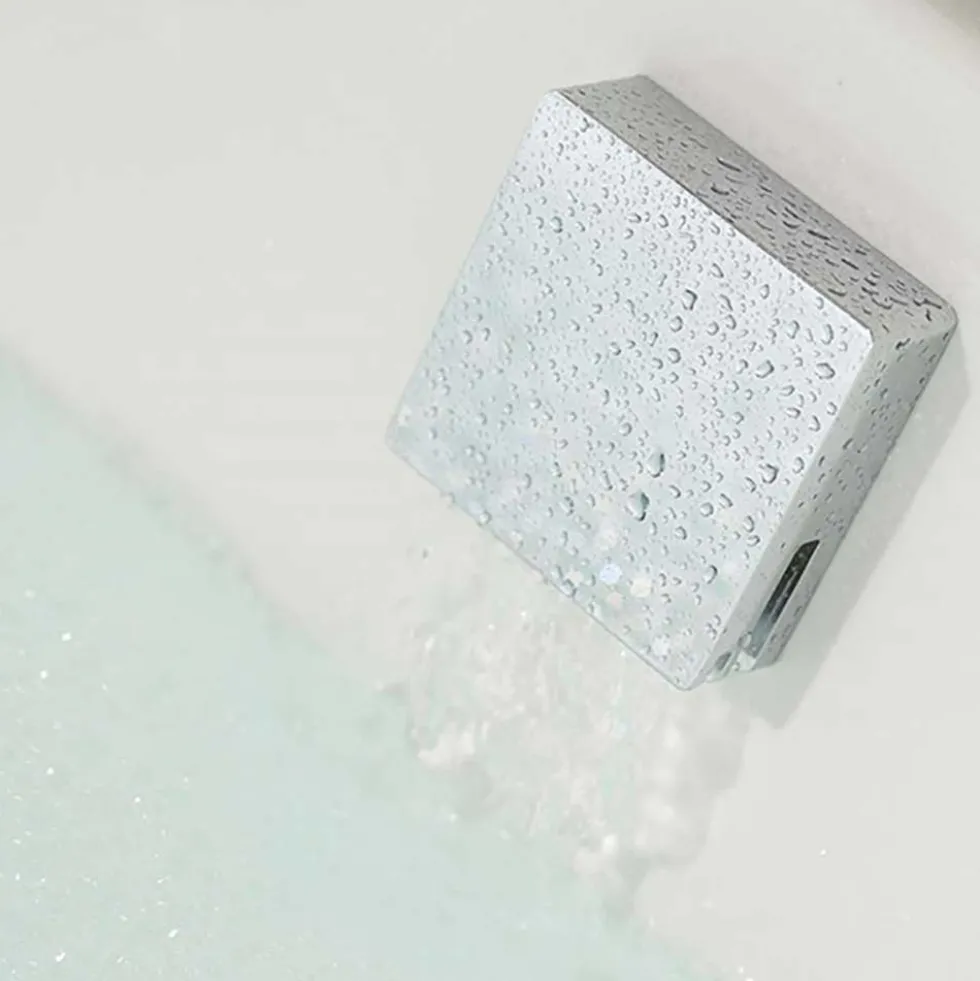

Overflow Bath Filler Features:

• Chrome-plated overflow bath filler
• Clicker waste included
• Minimum water pressure required: 1 bar
